Thermal runaway is a term that sounds like something out of a science fiction movie, but it is a very real and dangerous phenomenon that can occur in batteries, especially the lithium-ion batteries that power our modern world.
It describes a dangerous, self-accelerating chain reaction where an increase in temperature causes a battery cell to generate even more heat, leading to a rapid and uncontrollable temperature rise.
This destructive cycle can cause a battery to vent hot, toxic, and flammable gases, catch fire, or even explode with violent force.
Learning the what, why, and how of thermal runaway is the first and most critical step toward ensuring battery safety for anyone who uses, designs, or works with battery-powered systems.
What Causes Thermal Runaway in Batteries?
Thermal runaway is not a spontaneous event.
It is always triggered by some form of abuse, stress, or internal failure that causes a single cell within a battery pack to overheat.
Once the temperature inside that cell reaches a critical threshold - which varies depending on the battery’s chemistry - a series of exothermic (heat-generating) chemical reactions begins.
The heat from these reactions causes the internal temperature to rise further, which in turn dramatically accelerates the reaction rate. This creates a dangerous positive feedback loop that, once started, is nearly impossible to stop.
4 Primary Triggers of Thermal Runaway
There are four main categories of events that can push a battery cell past its tipping point and initiate this hazardous process.
1. Mechanical Damage
Physical damage is one of the most common and direct causes of thermal runaway.
Doing things like puncturing a battery with a sharp object, crushing it under heavy weight, or severely bending it can cause the thin separator between the internal layers of the anode and cathode to tear. This creates an immediate internal short circuit, a low-resistance path for the electrical current to flow.
The massive and instantaneous flow of current across this short generates a tremendous amount of heat in a very small area, quickly initiating thermal runaway.
2. Electrical Abuse
Pushing a battery outside its designed electrical limits is another major risk factor. Overcharging is particularly dangerous.
When a battery is charged beyond its maximum safe voltage, it can lead to the decomposition of the electrolyte and the plating of metallic lithium on the anode, a process known as lithium dendrite growth. These dendrites can eventually pierce the separator, causing an internal short circuit. Similarly, charging a battery too quickly (exceeding its C-rate) or discharging it at a rate higher than it is designed for can also generate excessive internal heat and lead to failure.
3. Thermal Stress
Batteries are designed to operate within a specific temperature range. Exposing a battery to high external temperatures, such as leaving a smartphone in a hot car or operating equipment near a furnace, can also trigger thermal runaway. If the ambient temperature is high enough, it can provide the initial energy needed to start the exothermic decomposition reactions within the cell, even without any other form of abuse. This is why proper thermal management is so critical in battery pack design.
4. Manufacturing Defects
Although much less common with batteries from reputable, high-quality manufacturers, microscopic imperfections can be introduced during the complex assembly process. Tiny metal particles, burrs on the electrodes, or misaligned layers can create minute internal short circuits. Over many charge and discharge cycles, these tiny shorts can slowly generate heat and cause the battery materials to degrade, eventually leading to a full-blown thermal runaway event.

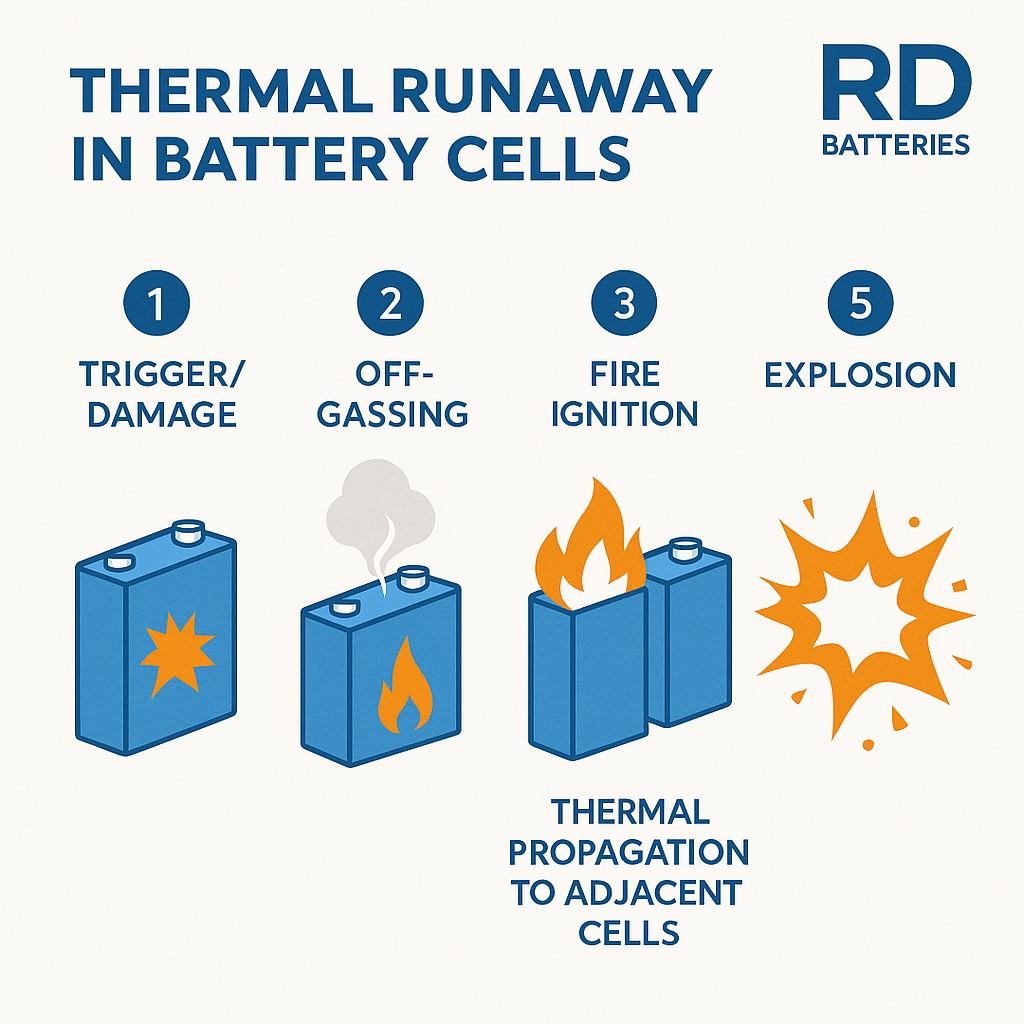

What Happens During Thermal Runaway? A Step-by-Step Breakdown
Thermal runaway is a rapid, cascading failure.
While the exact timing can vary from seconds to minutes depending on the battery size and chemistry, the sequence of events is generally consistent and alarmingly fast.
-
Initiation (The Trigger): The process begins with one of the triggers mentioned above. A localized hot spot forms within a single cell, and its temperature begins to climb.
-
Off-Gassing and Venting: As the internal temperature rises (typically between 80-120°C), the solid electrolyte interphase (SEI) layer on the anode begins to break down. This initial decomposition releases flammable hydrocarbon gases like ethylene and propylene. As the pressure builds, the cell’s safety vent will open to release these gases. This is often the first visible sign—a puff of white or grey smoke or vapor.
-
Separator Meltdown and Fire: With increasing heat (around 130-150°C), the polymer separator that keeps the anode and cathode apart melts. This causes a massive internal short circuit, and the temperature skyrockets. The cathode material begins to decompose, releasing oxygen. This creates a volatile internal environment where flammable electrolyte and gases are mixed with oxygen and intense heat, often resulting in the cell igniting.
-
Thermal Propagation: The first cell to fail releases an enormous amount of energy, often reaching temperatures of over 700°C. This intense heat radiates and conducts to the adjacent cells in the battery pack. This heat transfer raises the temperature of the neighboring cells to their own trigger point, causing them to enter thermal runaway as well. This creates a domino effect, known as thermal propagation, which is why a single cell failure can lead to the entire battery pack catching fire.
-
Explosion: In the most severe cases, the rapid and violent release of gas and energy can be so powerful that it causes the battery pack’s housing to rupture or explode, a phenomenon known as a vapor cloud explosion (VCE), sending shrapnel and burning material in all directions.

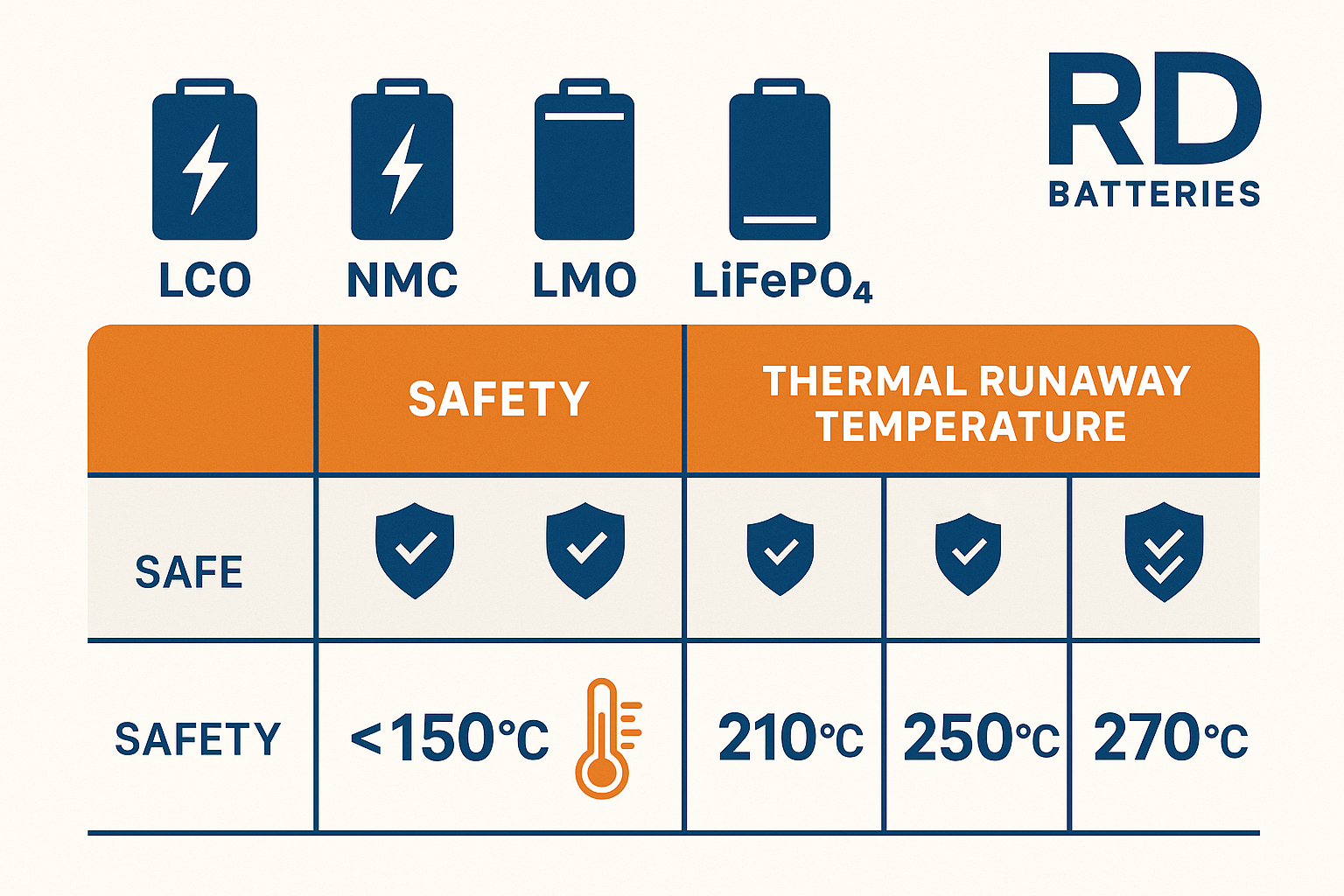

How Different Battery Chemistries Affect Thermal Runaway
Not all lithium-ion batteries are created equal when it comes to thermal runaway.
The specific chemistry of the cathode material plays a huge role in a battery's stability and its propensity for thermal runaway.
Let’s look at some common battery types as examples:
-
Lithium Cobalt Oxide (LCO): Commonly found in smartphones and laptops, LCO batteries have a high energy density but are the most prone to thermal runaway. They have a relatively low thermal stability, with runaway possible at temperatures as low as 150°C.
-
Lithium Manganese Oxide (LMO): LMO batteries offer a better thermal stability than LCO, but with a lower energy density. They are often used in power tools and some electric vehicles.
-
Nickel Manganese Cobalt (NMC): NMC is a popular choice for electric vehicles and energy storage systems due to its good balance of energy density, power, and safety. It is more stable than LCO, but can still experience thermal runaway under abuse.
-
Lithium Iron Phosphate (LiFePO4): LiFePO4 batteries are widely considered the safest of the common lithium-ion chemistries. They have a very stable chemical structure and a much higher thermal runaway threshold, typically over 270°C. While they have a slightly lower energy density, their safety and long cycle life make them ideal for applications where safety is paramount.
How to Stop or Prevent Thermal Runaway
Once a lithium-ion cell enters full-blown thermal runaway, it is extremely difficult, if not impossible, to stop.
The chemical reaction is self-sustaining and does not require external oxygen.
The primary goal for first responders is not to extinguish the cell itself, but to cool the surrounding cells to prevent thermal propagation.
This is why large amounts of water are often used to fight battery fires—the goal is cooling, not extinguishing the initial flame. Therefore, the best strategy is always prevention.
3 Key Strategies for Preventing Thermal Runaway
Preventing thermal runaway involves a combination of smart design, safe handling, and disciplined usage.
-
Use High-Quality Batteries and Chargers: This is the most important rule. Always purchase batteries and chargers from reputable, well-known manufacturers. High-quality batteries are made with superior materials, have stricter quality control to eliminate manufacturing defects, and incorporate more advanced safety features. A certified smart charger is also essential, as it is designed to communicate with the battery and prevent overcharging.
-
Handle Batteries with Care: Treat batteries like the sensitive electronic components they are. Avoid dropping, puncturing, or otherwise damaging them. Store them in a cool, dry place away from direct sunlight, flammable materials, and other heat sources. Never use a battery that appears swollen, dented, discolored, or damaged in any way. If you see signs of damage, safely discharge and recycle it immediately.
-
Follow Proper Charging Procedures: Never leave a charging battery unattended for long periods. Do not charge batteries on flammable surfaces like a bed or couch. Unplug them once they are fully charged, or use a smart charger that automatically cuts off the power. Avoid using fast chargers all the time, as they can put additional stress on the battery.
The Role of the Battery Management System (BMS)
A Battery Management System (BMS) is an electronic circuit that acts as the brain of the battery pack. It is the most critical safety component for preventing thermal runaway. The BMS continuously monitors the battery's state of health and ensures it operates within its safe limits.
A BMS typically monitors and controls:
-
Voltage: It prevents overcharging by stopping the charge current when any cell reaches its maximum voltage. It also prevents over-discharging by cutting off the power when a cell reaches its minimum voltage.
-
Current: It protects against short circuits by immediately disconnecting the battery if it detects an unsafe surge in current.
-
Temperature: It uses multiple sensors to monitor the temperature of the cells and can disconnect the battery if it gets too hot or too cold.
-
Cell Balancing: It ensures that all the cells in the pack are at a similar state of charge, which prevents individual cells from being overcharged or over-discharged.
Have Questions About Battery Safety?
Understanding the risks of thermal runaway is the first step toward ensuring battery safety.
By choosing high-quality batteries with a robust BMS, handling them with care, and following proper charging procedures, you can significantly reduce the risk of this dangerous phenomenon.
