If you’ve ever used a smartphone, laptop, or even an electric car, you’ve relied on lithium-ion batteries.
These rechargeable power sources are the unsung heroes of modern technology, packing a massive amount of energy into a small, lightweight package. But what exactly are they, and how do they work?
This guide breaks down everything you need to know about the technology that powers your world.
What Are Lithium-Ion Batteries?
So, what are considered lithium-ion batteries?
In short, they are a type of rechargeable battery where lithium ions move between a negative and a positive electrode to generate an electrical current.
Unlike the disposable batteries in your TV remote, these are designed to be charged and discharged hundreds or even thousands of time, making them the go-to choice for portable electronics and clean energy solutions.
A Very Brief History of Lithium-Ion Batteries
The concept of a lithium battery has been around since the early 1900s, but it wasn’t until the 1970s and 1980s that the foundations for the modern rechargeable lithium-ion battery were laid by researchers like M. Stanley Whittingham, John Goodenough, and Akira Yoshino, who would later share the Nobel Prize in Chemistry for their work.
And the first commercial lithium-ion battery was released by Sony in 1991, and it kickstarted a technological revolution.
This breakthrough enabled the development of the portable electronics we know and love today, from the first camcorders and Walkmans to the latest smartphones and tablets.
How Do Lithium-Ion Batteries Work?
Understanding how a lithium-ion battery works is easier than you might think.
It all comes down to a simple chemical process involving the movement of tiny particles. Every lithium-ion battery is made of a few key components that work together to store and release energy.

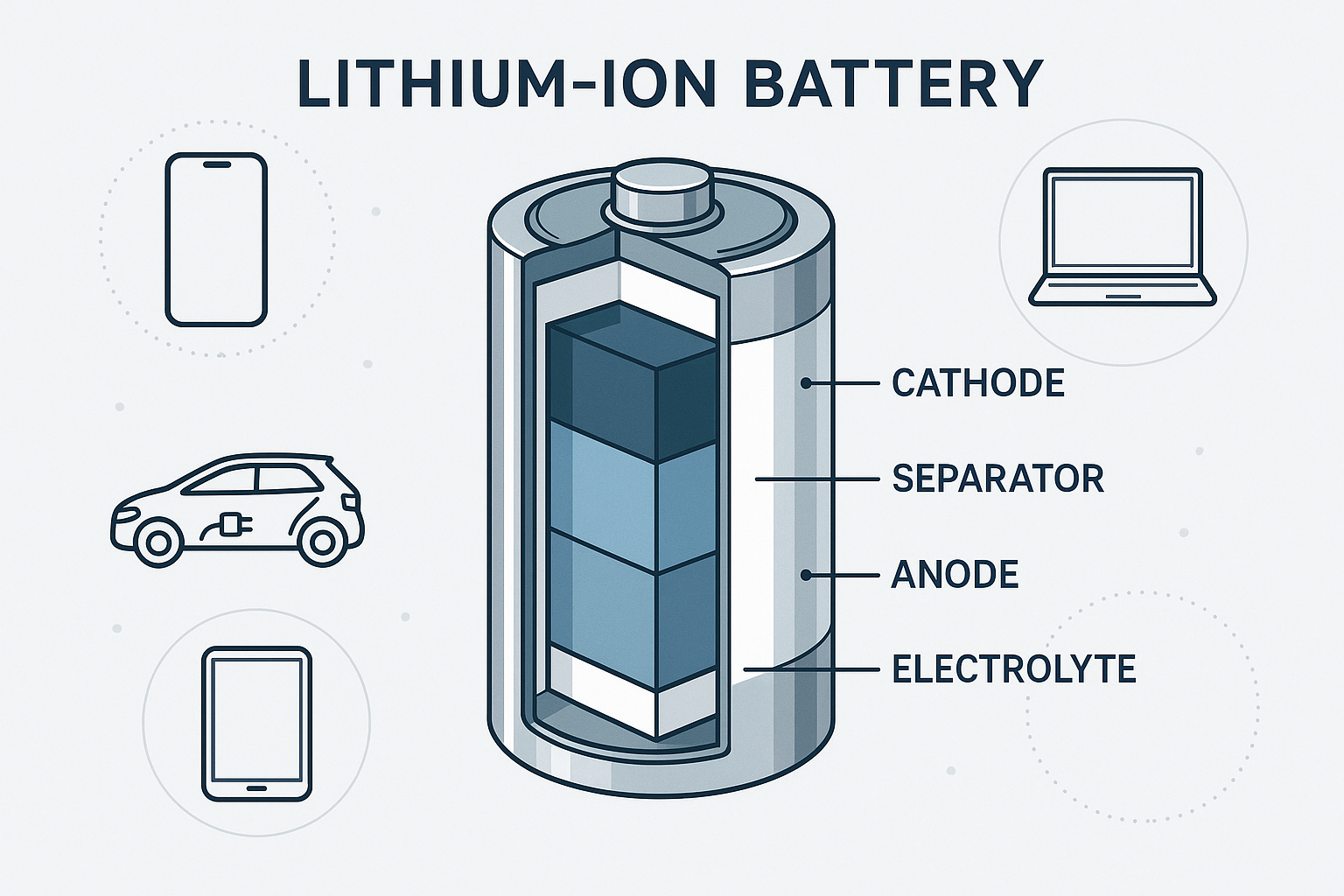

The 4 Core Components of a Lithium-Ion Cell
To truly grasp how these batteries function, let’s look at the four essential parts inside every cell.
1. Cathode (+)
The positive electrode, which is typically made from a lithium metal oxide compound. The specific material used here defines the battery’s characteristics. Common types include Lithium Cobalt Oxide (LCO), Lithium Manganese Oxide (LMO), Nickel Manganese Cobalt (NMC), and Lithium Iron Phosphate (LiFePO4).
2. Anode (-)
The negative electrode, usually made from graphite. The anode holds lithium ions when the battery is fully charged.
3. Electrolyte
A chemical solution (often a lithium salt in an organic solvent) that allows lithium ions to travel between the anode and cathode. It’s the highway for ions but not for electrons.
4. Separator
A micro-porous membrane that sits between the anode and cathode. It physically separates the two electrodes to prevent a short circuit while allowing the lithium ions to pass through freely.
The Charging and Discharging Cycle Explained
When you plug in your device, you kick off the charging cycle.
During this process, lithium ions are pulled from the cathode, travel through the electrolyte and separator, and embed themselves into the anode. The anode essentially acts like a sponge, soaking up ions and storing potential energy.
When you unplug your device and start using it, the discharging cycle begins. The lithium ions naturally want to move back to the cathode, a more stable location. As they travel from the anode to the cathode, electrons are released into the external circuit. This flow of electrons is the electricity that powers your device.
This entire process repeats every time you charge and use your battery. The efficiency and longevity of this cycle are what make lithium-ion technology so revolutionary.
4 Key Differences Between Lithium-Ion and Regular Batteries
What makes a lithium-ion battery different from a standard alkaline or lead-acid battery? The differences are significant, and they explain why lithium-ion has become the dominant technology.
1. Rechargeability and Lifespan
The most obvious difference is that lithium-ion batteries are rechargeable, while most common household batteries (like AA or AAA alkalines) are not. A single lithium-ion battery can be charged hundreds or thousands of times, making it far more cost-effective and environmentally friendly over its lifespan.
2. Energy Density
Lithium is the lightest of all metals and has the highest electrochemical potential. This gives lithium-ion batteries an incredibly high energy density. In simple terms, they can store more energy in a smaller, lighter package compared to older technologies like lead-acid or nickel-cadmium (NiCd). A lead-acid battery of the same capacity would be several times heavier.
3. Maintenance and Memory Effect
Older rechargeable batteries, like NiCd, suffered from a “memory effect.” If you didn’t fully discharge them before recharging, they would “forget” their full capacity. Lithium-ion batteries have no memory effect, so you can top them off whenever you like without damaging their long-term capacity. They are also sealed and require no maintenance, unlike flooded lead-acid batteries that need to be topped off with distilled water.
4. Voltage
Lithium-ion cells produce a higher voltage (typically 3.6V or 3.7V) compared to other rechargeable cells like NiCd or NiMH (which are 1.2V). This means fewer cells are needed to power a device, simplifying the design and reducing weight.
Are Lithium-Ion Batteries Safe? Understanding the Risks
With so much power packed into a small space, safety is a common concern.
You’ve likely heard stories of phones catching fire or even hoverboards exploding.
While these incidents are mercifully rare, the risks are real.
Fortunately, modern lithium-ion batteries are designed with multiple safety features to prevent accidents.
What Causes Lithium-Ion Batteries to Fail?
Most failures, like overheating or catching fire, are caused by a phenomenon called thermal runaway. This is a chain reaction where a battery’s internal temperature rises uncontrollably.
The primary causes for this problem include:
-
Manufacturing Defects: Microscopic metal particles or flaws in the separator can cause a short circuit.
-
Physical Damage: Puncturing, crushing, or dropping a battery can damage the separator and lead to a short.
-
Overcharging: Charging a battery beyond its maximum voltage can cause the electrolyte to decompose and create flammable gases.
-
High Temperatures: Exposing a battery to extreme heat can trigger thermal runaway.
This is why it’s always smart to inspect a battery - lithium-ion or otherwise - before using it, especially if you’ve kept it stored for a prolonged period of time. Even in the safest of conditions, it’s still possible for batteries to become damaged and, thus, dangerous.
Built-in Safety: The Battery Management System (BMS)
To prevent these issues, every quality lithium-ion battery pack includes a Battery Management System (BMS).
This is a small electronic circuit board that acts as the battery’s brain. The BMS monitors the battery’s state and protects it from dangerous conditions.
Its key functions include:
-
Overcharge Protection: Stops the charging process once the cells reach their maximum voltage.
-
Over-Discharge Protection: Prevents the battery from draining to a level that would cause permanent damage.
-
Temperature Monitoring: Halts charging or discharging if the battery gets too hot or too cold.
-
Cell Balancing: Ensures all the cells in a multi-cell pack are at the same voltage, which extends the battery’s life.
So, are lithium-ion batteries dangerous?
Short answer: no.
With a properly designed BMS and when handled correctly, they are very safe. The vast majority of the billions of lithium-ion cells produced each year work without incident.
A Guide to Traveling With and Shipping Lithium-Ion Batteries
Because of their potential risks, there are strict regulations for transporting lithium-ion batteries.
Whether you’re flying on a plane or shipping a package, it’s important that you know the rules.
Can You Take Lithium-Ion Batteries on a Plane?
Yes, but with limitations.
The Federal Aviation Administration (FAA) has specific rules to ensure safety:
-
Carry-On Luggage: Spare (uninstalled) lithium-ion batteries must be in your carry-on bag. This is so the flight crew can respond quickly if an incident occurs. You should protect the terminals from short-circuiting by keeping them in their original packaging, a battery case, or a separate pouch.
-
Checked Luggage: Devices with installed lithium-ion batteries (like laptops or cameras) can be in your checked luggage, but it’s highly recommended to carry them on. Devices in checked bags must be completely turned off.
-
Size Limits: Batteries over 100 watt-hours (Wh) may require airline approval. Batteries over 160 Wh are generally forbidden.
Shipping Regulations
Shipping lithium-ion batteries is even more complex.
They are considered hazardous materials or dangerous goods.
Couriers like UPS, FedEx, and the postal service have strict rules regarding labeling, packaging, and documentation. If you need to ship a device with a lithium-ion battery, always declare it and follow the carrier’s specific instructions to avoid fines and ensure it arrives safely.
You can also check out UPS’s rules here and FedEx’s rules here.
What's the Future of Lithium-Ion Batteries?
While lithium-ion is the king of rechargeable batteries today, the technology is always advancing. Researchers are hard at work developing the next generation of power storage.
One of the most promising is the solid-state battery.
These batteries replace the liquid electrolyte with a solid material, which could lead to even higher energy density, a longer lifespan, and improved safety.
Other research areas include lithium-sulfur and lithium-air batteries, which could offer theoretical energy densities far beyond what is possible today. While these technologies are still in development, they offer a glimpse into a future with even more powerful and sustainable energy solutions.
Frequently Asked Questions About Lithium-Ion Batteries
Finally, let’s answer some of the most common questions people have about this technology.
How do I know if I have a lithium battery?
Most rechargeable devices today use lithium-ion. Look for labels on the device or battery itself. It will often say “Li-ion” or “Lithium-Ion.” A standard AA battery is typically alkaline or NiMH, not lithium-ion, although lithium primary (non-rechargeable) versions exist.
Are lithium-ion batteries the same as lithium batteries?
Not exactly.
Though similar, lithium batteries and lithium-ion batteries are different.
The big difference is that lithium-ion batteries are rechargeable and use lithium compounds instead of pure lithium metal, making them safer for those repeated charging cycles.
While lithium-ion batteries are commonly used in phones, laptops, EVs, and power tools because they provide high energy density and long cycle life, lithium batteries are more commonly chosen for devices like cameras, watches, and emergency equipment. And as we talked about before, these are not rechargeable.
If you’re curious, we’ve also covered the difference between lithium-ion and lead-acid batteries in another post.
Can lithium-ion batteries be recycled?
Yes, and they absolutely should be.
Lithium-ion batteries are not universal waste and should not be thrown in the trash. They contain valuable materials like cobalt, nickel, and lithium that can be recovered and reused.
They also contain materials that can be harmful to the environment if sent to a landfill. Look for local e-waste recycling centers or battery drop-off locations.
So, please, definitely recycle your batteries.
Can lithium-ion batteries get wet or freeze?
Getting a lithium-ion battery wet can cause a short circuit and permanent damage.
So, if a battery is submerged, do not use it.
Similarly, charging a battery in freezing temperatures (below 32°F or 0°C) can cause permanent damage to the anode, a process called lithium plating. Most BMS systems will prevent charging in cold conditions to protect the battery.
Why are lithium-ion batteries so popular?
Their popularity comes down to three things: high energy density (more power, less weight), long cycle life (rechargeable hundreds of times), and no memory effect. This combination makes them ideal for everything from tiny electronics to large electric vehicles. So, expect that popularity to continue.
Will lithium-ion batteries be replaced?
Technology is always evolving, so it’s absolutely possible.
While we’re pretty confident lithium-ion is likely to remain dominant for years to come, researchers are actively working on next-generation batteries, such as solid-state batteries, which promise even greater energy density and safety.
But again, for the foreseeable future, lithium-ion will remain the king of rechargeable batteries.
Why do lithium-ion batteries explode or catch fire?
This is almost always due to thermal runaway, which can be triggered by a short circuit from physical damage, a manufacturing defect, or overcharging. A well-designed BMS is the primary defense against this.
Are lithium-ion batteries bad for the environment?
The mining of raw materials like lithium and cobalt has environmental and social impacts.
However, the long, rechargeable life of these batteries and their role in enabling clean energy technologies like EVs and solar storage help offset their initial footprint.
And as we mentioned earlier, proper recycling is crucial to minimize their environmental impact.
