Choosing the Right Battery for Your Fish Finder

Posted: November 17, 2025

Dedicated anglers are known for employing a wide range of tools and devices to score their intended trophies.

Obviously, there are poles and nets. There are also a limitless combination of baits, jigs, and hooks you can use.

But at some point, every angler splurges for a fishfinder to help them see what’s going on below the surface.

And yet, this beloved device is only as reliable as its power source.

A dead battery will have you fishing blind, cutting your day short and sending you home empty-handed (an especially upsetting predicament when ice fishing, which can easily take an hour just to get set up).

If you want to get the most out of your equipment, choosing the right battery for your fish finder is not just a recommendation—it’s a necessity. And the clear winner for modern fish finders is the lithium (LiFePO4) battery, offering a lightweight, long-lasting, and powerful solution that older technologies simply cannot match.

Still, if you want more information, this guide will walk you through everything you need to know about powering your fish finder. We will explore how these devices work, compare the different battery types available, and break down exactly why lithium batteries are the superior choice.

In short, you’ll be able to confidently select a battery that keeps you on the water longer and helps you catch more fish.

A Quick Primer: What Is a Fish Finder and How Does It Work?

A fish finder is an electronic device that uses sonar technology to locate and identify objects underwater.

Like…fish.

It does this by sending soundwaves from a transducer into the water, which then bounce off of fish, underwater structures, and the bottom. The device’s display screen then shows a graphical representation of these reflected signals, giving you a clear picture of what is happening beneath the surface. This allows you to pinpoint the best fishing spots, track your lure, and understand the underwater topography.

Modern fish finders often come equipped with advanced features like GPS, detailed charts, and high-resolution imaging, all of which draw a steady stream of electrical power. Most fish finders operate on a standard 12-volt (12V) system, which is why it’s so important that you use a compatible battery that can consistently meet these energy demands throughout your entire fishing excursion.

How Are Fish Finders Powered?

How you power your fish finder largely depends on the size of your vessel or if you’re fishing from on top of the ice (as is often the case up here in Minnesota where our HQ is located).

On larger boats, fish finders are typically wired into an onboard 12V electrical system, which draws power directly from the main marine or house battery bank. This integrated setup is convenient, as it powers all of the boat’s electronics from a central source.

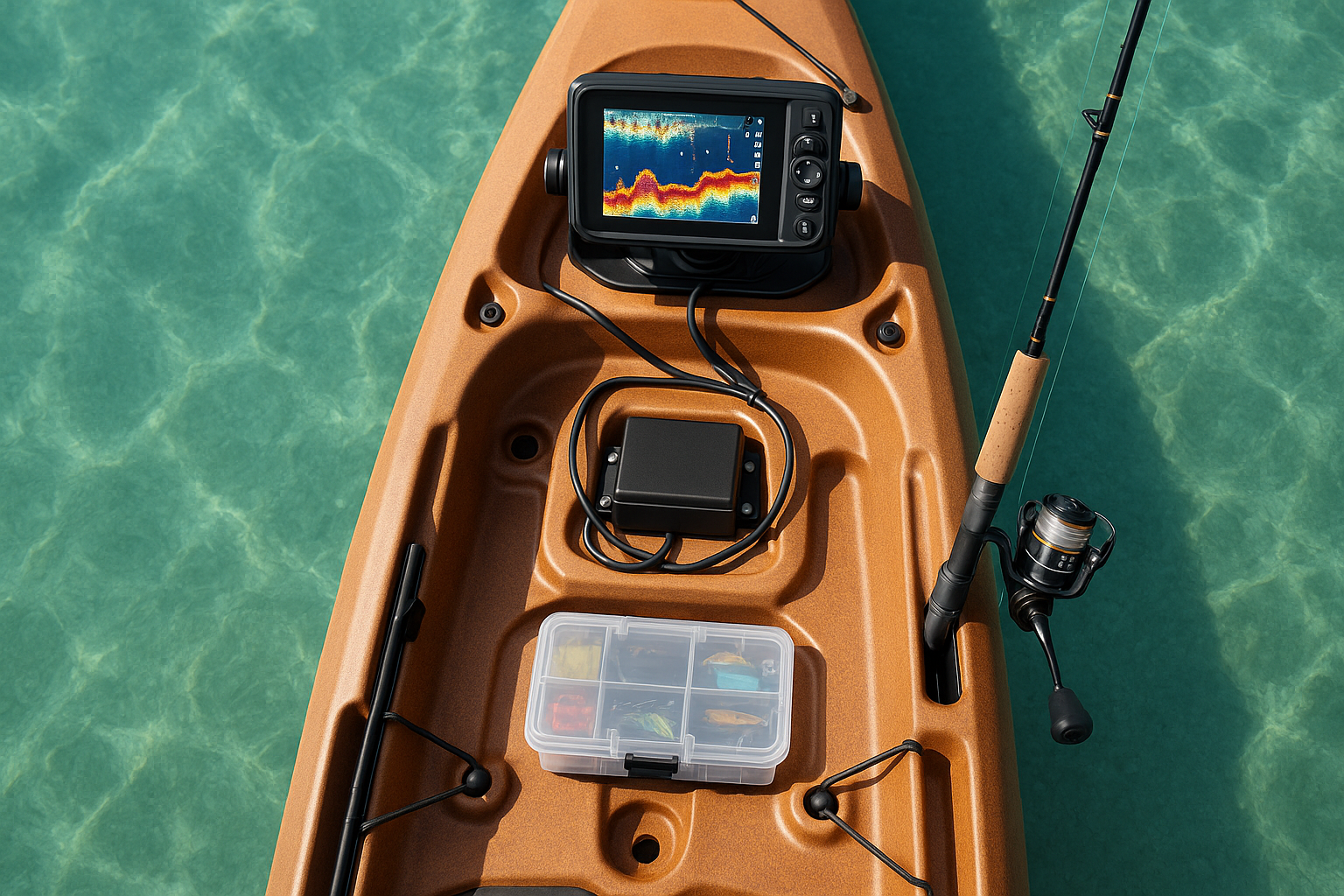

However, for smaller boats like kayaks, jon boats, or canoes that lack a built-in electrical system - or again, if you’re fishing on top of the ice - a separate, portable battery is required.

In these cases, you’ll need a standalone battery to connect directly to your fish finder.

And even on larger boats, some fishermen still prefer to use a dedicated battery for their electronics to ensure a clean, stable power supply that is not affected by the heavy draw of a trolling motor or other equipment. A 12V battery is the universal standard for nearly all fish finders on the market, from basic models to high-end units 2

The 4 Types of Batteries for Fish Finders

When it comes to powering your fish finder, you have several battery types to choose from. While lithium (LiFePO4) batteries have become the modern standard for their superior performance, it is important to understand the pros and cons of each option. The four main types of batteries you will encounter are lead-acid, Absorbent Glass Mat (AGM), gel, and lithium.

1. Lead-Acid Batteries

Traditional flooded lead-acid batteries are the oldest and most affordable option.

They have been used in marine applications for decades and are widely available.

However, their low upfront cost comes with significant drawbacks.

For one, they are extremely heavy, require regular maintenance (like checking and topping off electrolyte levels), and can be damaged if discharged beyond 50% of their capacity. Their lifespan is also the shortest of all the battery types, typically lasting only a few hundred charge cycles.

2. AGM (Absorbent Glass Mat) Batteries

AGM batteries are a type of sealed lead-acid battery that uses a fiberglass mat to absorb the electrolyte, making them spill-proof and maintenance-free. They offer better vibration resistance and a slightly longer lifespan than traditional lead-acid batteries.

While they are an improvement, they are still heavy and sensitive to overcharging. Like their flooded counterparts, their performance degrades if they are deeply discharged, limiting their usable capacity.

3. Gel Cell Batteries

Gel batteries are another form of sealed lead-acid battery, but they use a silica-based gel to suspend the electrolyte. This design makes them highly resistant to vibration and shock, and they perform well in deep-cycle applications.

Unfortunately, gel batteries are more expensive than both flooded and AGM types and require specific charging profiles to avoid permanent damage. They also suffer from the same weight and limited usable capacity issues as other lead-acid technologies.

4. Lithium (LiFePO4) Batteries

Lithium iron phosphate (LiFePO4) batteries represent the pinnacle of modern battery technology for marine use.

They are significantly lighter, offer a much longer lifespan (often 10 times that of lead-acid), and can be safely discharged up to 100% without causing damage.

This means you get to use the full rated capacity of the battery. They are also maintenance-free and can charge much faster than any lead-acid variant. While the initial investment is higher, their extended lifespan and superior performance make them the most cost-effective choice over the long term.

For more information on this particular option, check out our guide to LiFePO4 batteries.

Battery Technology Comparison

Feature	Lead-Acid	AGM	Gel	Lithium (LiFePO4)
Usable Capacity	50%	50-60%	50-60%	100%
Lifespan (Cycles)	300-500	400-700	500-1,000	3,000-5,000+
Weight	Very Heavy	Heavy	Heavy	Lightweight (50-70% Lighter)
Maintenance	Required	None	None	None
Charging Speed	Slow (8-12+ hrs)	Moderate (6-10 hrs)	Slow (8-12+ hrs)	Fast (1-4 hrs)
Upfront Cost	Low	Medium	Medium-High	High
Long-Term Value	Poor	Fair	Fair	Excellent

5 Reasons Lithium Batteries Are the Best Choice for Fish Finders

As we mentioned at the beginning, our number one choice for powering fish finders - whether it’s on a boat or on the ice - is lithium ferro phosphate.

When you compare the different battery technologies, it becomes clear why fishermen are overwhelmingly choosing this very popular type of lithium battery to power their fish finders and other marine electronics. The advantages are significant, including everything from performance and convenience to long-term value.

But here are just some of the key reasons why lithium is the superior choice.

1. Lightweight and Portable

Lithium batteries weigh less than half as much as their lead-acid counterparts of the same capacity. This drastic weight reduction is a game-changer for small vessels like kayaks, canoes, and jon boats, where every pound matters. A lighter boat is easier to maneuver, faster in the water, and can access shallower areas. The portability also makes it effortless to transport the battery to and from your boat for charging or storage.

2. Long Lifespan and Superior Value

A lead-acid battery might last you a few seasons if you are lucky, typically providing 300-500 charge cycles.

On the other hand, a high-quality LiFePO4 battery can last you 3,000 to 5,000 cycles or more, lasting up to 10x longer. While the upfront cost of lithium is higher, you would need to buy several lead-acid batteries over the lifespan of a single lithium battery, making lithium the far-and-away more economical investment in the long run.

3. Full-Depth Discharging

One of the biggest limitations of lead-acid batteries is that you can only use about 50% of their rated capacity without causing permanent damage.

A 100Ah lead-acid battery effectively gives you only 50Ah of usable power.

However, lithium batteries can be safely discharged to 100% of their capacity. This means a 100Ah lithium battery provides DOUBLE the usable power of a 100Ah lead-acid battery, allowing you to run your fish finder for much longer.

4. Fast Charging Capability

Lithium batteries can be recharged up to four times faster than lead-acid batteries. A typical LiFePO4 battery can go from empty to full in just a few hours, while a lead-acid battery often needs to charge overnight. This quick turnaround is a huge advantage for anglers who fish on consecutive days or have limited time between trips.

5. Consistent Power

Lithium batteries deliver a stable voltage output, ensuring your sensitive electronics receive consistent power without faltering. They are also completely maintenance-free, requiring no watering or cleaning of terminals.

Most are equipped with an advanced Battery Management System (BMS) that protects against overcharging, over-discharging, and short circuits, giving you reliable, worry-free performance.

5 Key Features to Look for in a Fish Finder Battery

Once you have decided on the right battery chemistry - with lithium being the top recommendation - it is time to consider the specific features that will best suit your needs. Choosing a battery with the right specifications is crucial for ensuring you have enough power for your entire fishing trip.

1. Amp-Hour (Ah) Capacity

The amp-hour (Ah) rating indicates the battery's storage capacity. Most fish finders draw between 1 to 3 amps per hour, depending on the model, screen size, and features being used.

So, for a full day of fishing (8+ hours), a battery with a capacity of 50Ah to 100Ah should work just fine. But if you want to calculate your estimated runtime, use this simple formula:

Battery Ah Capacity / Device Amp Draw = Estimated Runtime in Hours

For example, a 100Ah battery powering a fish finder that draws 2 amps will last approximately 50 hours.

2. Weight and Portability

As we talked about earlier, weight is a critical factor, especially if you plan on using your fishfinder in a kayak or some other type of small boat. Always check the battery’s weight and dimensions to ensure it fits your space and does not add unnecessary bulk. The lightweight nature of lithium batteries makes them the ideal choice for any application where portability is a priority.

3. Water Resistance and Durability

Marine environments can be harsh, so your battery must be built to withstand it. Look for batteries with a high IP (Ingress Protection) rating, such as IP67, which indicates the battery is protected from dust and can be submerged in up to one meter of water for 30 minutes. A durable, sealed case is essential for protecting the internal components from water, salt spray, and corrosion.

4. Cycle Life and Warranty

Cycle life refers to the number of times a battery can be charged and discharged before its capacity begins to diminish. A long cycle life is a key indicator of a high-quality battery and is directly related to its overall lifespan. Lithium batteries lead the industry with 3,000-5,000+ cycles. A strong warranty (10 years is the standard for top-tier LiFePO4 batteries) also demonstrates the manufacturer's confidence in their product and protects your investment.

5. Charging Options

Consider how you will recharge your battery. Lithium batteries are compatible with a wide range of smart chargers, including those designed for marine use. Some anglers also use solar panels to supplement their power and extend their time on the water. Ensure you use a charger that is specifically designed for your battery’s chemistry to guarantee safe and efficient charging.

How Long Do Fish Finder Batteries Last?

When considering your options, one obvious question is: how long is this battery going to last?

And there are two different aspects to consider:

The runtime on a single charge
The overall lifespan in years

Lithium batteries excel in both of these important areas, providing more time on the water today and for many years to come.

Runtime Per Charge

The runtime of a battery depends on its capacity (in amp-hours) and the power draw of your fish finder (in amps).

As we covered above, you can estimate your runtime with a simple calculation.

For instance, if you have a 50Ah battery and your fish finder draws 1 amp, you can expect about 50 hours of continuous use.

However, remember that a lead-acid battery’s usable capacity is only about half of its rating, so a 50Ah lead-acid battery would only provide about 25 hours of runtime.

Overall Lifespan in Years

The true measure of a battery’s value is its total lifespan, which is determined by its charge cycles. A lead-acid battery typically offers 500 to 1,200 charge cycles and may last anywhere from one to five years, depending on use and maintenance. Its lifespan can be significantly shortened if it is discharged too deeply or exposed to extreme temperatures.

In stark contrast, a lithium (LiFePO4) battery delivers 3,000 to 5,000+ charge cycles, giving it a lifespan of 10 to 15 years. This remarkable durability makes it a far more sustainable and cost-effective solution.

Do You Need a Dedicated Battery for Your Fish Finder?

Whether you need a dedicated battery for your fish finder depends on your boat’s setup and your specific needs.

On larger vessels with a house battery bank, it is common to wire the fish finder into the main electrical system. This is a simple and effective approach, as the house battery is designed to power all onboard electronics.

However, there are also some very good reasons to use a separate, dedicated battery.

A dedicated battery isolates your sensitive electronics from the electrical noise and significant power draws of a trolling motor, which can sometimes cause interference on your fish finder’s screen.

It also provides a layer of redundancy. If your main battery fails, your fish finder and other essential electronics will still be operational. For fishermen with kayaks, canoes, or other small boats without an existing power system, a dedicated portable battery is not just an option.

It’s a necessity.
